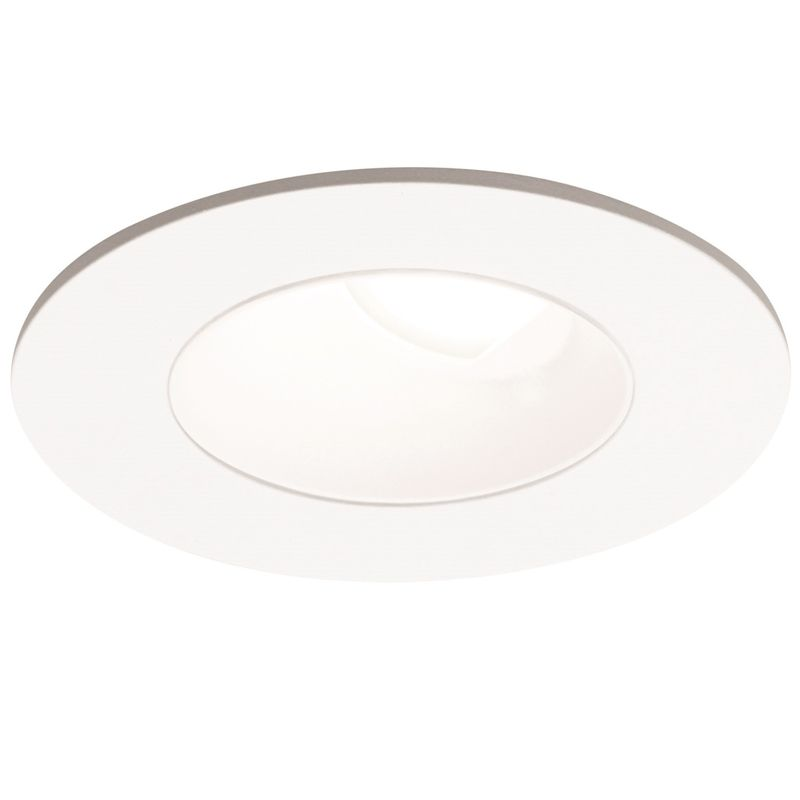

Contrast Lighting UR3G 3-3/4″ 10W Round Wall Wash Trim
Series：UR3G
ITEM No.：DR3G
Cut Hole Size : 3-3/4″
Watt：10W/15W
Finish : Matte White/Matte Black/Natural Anodized
Shape : Round
Description
Round 3-1/2in dedicated LED wall wash trim of the Urbai recessed LED line made by Liteharbor. Available with a frosted lens to soften the lighting on the wall, this model is offered in six trim finishes and in three painted reflector finishes. For an optimal lighting result and a quiet ceiling effect, Contraste suggests the use of the matte black reflector finish. Four color temperatures are offered with a 90+ CRI, and the 80+ CRI is offered with the 2,700K and 3,000K. The warm dimming option allows dimming the lights from 3,050K to 1,800K. The UR3G model has a good lighting performance, delivering 516 lumens @ 3,000K in performance 1 with its standard frosted lens. The housings are compatible with 120V and 277V input and two dimming options: ELV and 0-10V.
Specifications
| Volts: | 120V-277V |
| Watts: | 10W/15W |
| Lumens: | 480LM/ 659LM |
| Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
| Bulb Type: | LED |
| Color Finish: | Matte White/Matte Black/Natural Anodized |
| Beam Spread: | 65° |
| Luminous Size: | φ 2-5/8 in |
| Height: | 4-3/8 in |
| Green: | Energy Star, Yes |
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |  DG-URBAI | liteharbor | 20 MB | 254 |
| 2 | DG-FT_UR3G_EN | liteharbor | 6 MB | 159 |
