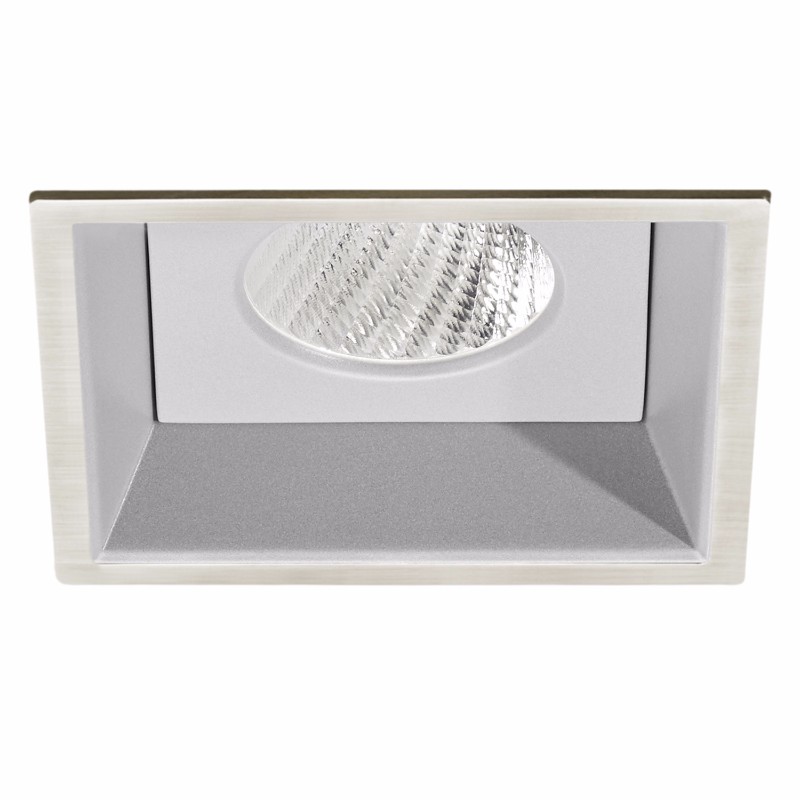

Contrast Lighting A4SFR-TR 4″ 14W Square Regressed LED Downlight

Description

Ardito dedicated LED ultra-thin square, fix, regressed flangeless 4” trim available in performance 1 (14W) and performance 2 (23W) with the remodeler, new construction and IC Air Tight housings. Available in four color temperatures and with a 90+ CRI, this model also offers the warm dimming and color tuning options. The A4SFR-TR model delivers over 1,300 lumens, with a performance of more than 96 lm/W @ 3,000K in performance 1. The beams produced by the optical reflector have very clean angles of 15° for the spot beam, 32° for the narrow flood beam and 40° for the flood beam. Ideal for architectural and eclectic applications, the A4SFR-TR model comes in four reflector finishes for better integration.
The MIPA4S mud-in-plate has to be ordered separately in order to install the trims without a flange, for a minimalist and contemporary look. The plates will be delivered quickly to the job site in order to install them in the ceiling prior to the arrival of the trims.

Innovative tilt/swivel design
Put light where you want it with 359° rotation and 30° tilt on all Ardito 3.5″ and 4″ Adjustable versions… including 3.5″ Regressed Adjustable trims.

Convenient aiming
Lock in place desired tilt/swivel position using a single adjustment screw from below.

Ardito Ambience. Accent Lights. Aperture Selection.
Introducing a wide variety of style-matched Ardito & Urbai luminaires working together to meet the most demanding application requirements.
• Dimming, including warm dimming and color tuning.
• Lighting effects through tilt/swivel accent luminaires
• Three aperture sizes: 2.5″, 3.5″ and 4″
• 3.5″ and 4″ models produce equivalent lumen outputs
• Special application products for wallwashing and wet locations



Ardito Series

Three aperture sizes: 2.5″, 3.5″ and 4″

Trim and Trimless (-TR) available.



Warm Dimming
Lumenetix Araya DDM1 Dynamic Dimming Module delivers dimmable white light that
warms as it dims, reproducing dimming conditions of a halogen lamp. It allows the
user to change the color temperature from 3,050K at full intensity to 1,800K at minimum
intensity, while ensuring a 90+ CRI over the full dimming range.



Specifications

Volts:	120V-277V
Watts:	14W
Lumens:	470 – 670LM
Color Temperature:	2700K/3000K/3500K/4000K/Warm Dimming
Bulb Type:	LED
Color Finish:	Matte White/Matte Black/Natural Anodized
Beam Spread:	15°/30°/42°
Luminous Size:	4 in *  4 in
Height:	6 in
Green:	Energy Star, Yes
