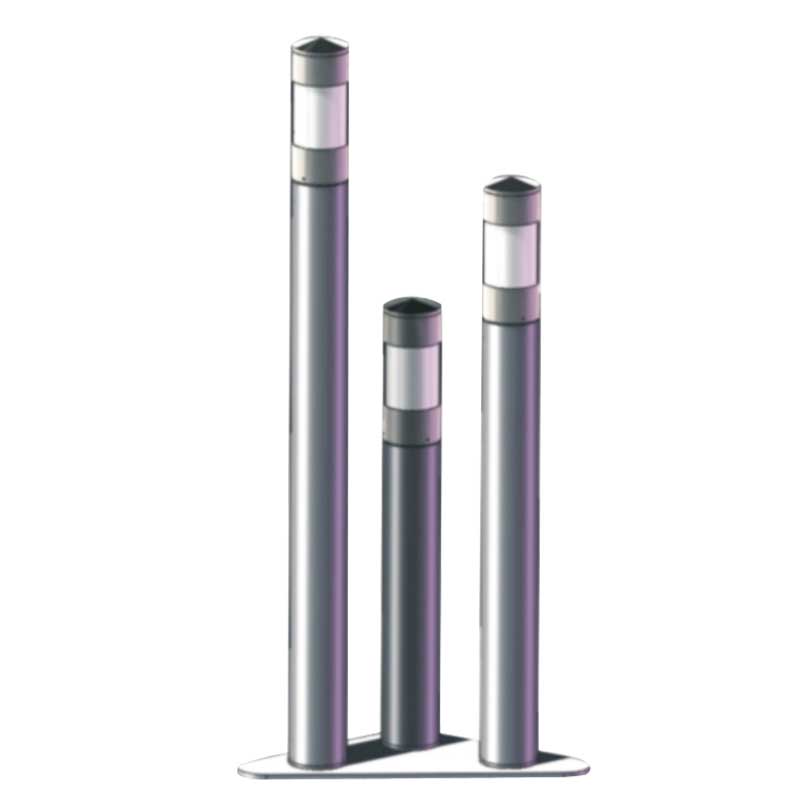

LED Path Lights Stainless Steel 13W China Manufacture for lighting project
/
/
/
/
LED Path Lights Stainless Steel 13W China Manufacture for lighting project

LED Path Lights Stainless Steel 13W China Manufacture for lighting project

ITEM No.: Y0301
product series : led bollard light
lamp : LED
material : Stainless Steel
wattage : 13W
ODM & OEM : acceptable

Description

The stainless steel bollard is constructed of 316 marine grade stainless steel and is cold worked for superior corrosion resistance

Ideal for harsh environments and where corrosion is common

Choose from 4 head styles: 360°open head,180°open head 360°slotted head and 180°slotted head

Provides uniform illumination and superior brightness control. Ideal for courtyards providing a safe ambient lighting

Features

Prewired integral driver for ease of installation

Driver is mounted to a stainless steel hanger bracket directly below the lamp

Tamper proof set screws for re-lamp access

Easy to maintain impact resistant long-life polished stainless steel

Conical upper reflector for optimal light distribution

UV stabilized 25″thick polycarbonate frosted lens

Available in 24″,32″or 42″height

Confirm with factory for other lengths

Anchor Base

Bollard base is secured by three 3 internal heavy-duty stainless steel rods

Mounts to three stainless steel anchor bolts ,each with two nuts and washers

Anchor kit supplied with fixture

Includes a stainless steel leveling bracket/template

Lamp Enclosure

Bollard top is easily removed for re-lamping and ballast accessibility.

Secured by three tamper-proof stainless steel set screws.

Weather-tight frosted UV stabilized polycarbonate lens with rubber gaskets completely seals unit.

Maintenance:

Stainless steel requires regular deaning and maintenance to prevent tarnishing or tea staining.

Electrical

1)LED

13W max

Recommend 6W high brightness

Life time:>50000 hours

Current 700Ma driver

Input:100-240V

50/60Hz

Output:Max 12V DC

Metal Halide

20W T6 CMH

39W T6 CMG

G12 Base

120-277V HPF electronic ballast with inherent thermal protection

Sound rated A

Minimum ballast temp -15℃/5℃.

Harmonic distortion<20%

Outdoor type 1

Increased reliability and safety with lamp “Turn-off Function

Compact Fluorescent

13W DTT

18/26W TRT

GU24 Universal Socket

Advance ballast

Inherent thermal protection

High power factor

Sound rated A

Class P minimum ballast temp -18℃/0℉

Harmonic distortion<10%

Outdoor type 1

Our advntage:

10-year experencs in lighting

machines are all well equipped

have established a superior working team

we warmly welcome your contacting
